Australian Certified Partner for Sirem Geared Agitator Motors and Centrifugal Wash Pumps for Milk Cooling Tanks

Geared Agitator Motors

Milk is to be cooled and stored in cooling tanks, either vertical (silo) or horizontal tanks where the milk is maintained at 4°C until collected. Gently stirring or agitation at low speeds is integral to the quality of the milk. Depending on the volume of milk and the shape of the tank we have four different series of geared agitator motors available from Sirem’s range that have been designed for milk vat agitation.

D Series

Recommended for 1,000lt to 2,500lt milk tanks

Part No:

GM001

Speed:30rpm
Shaft:14mm Threaded
Identification:

R1C 225 D2BCS

01 1600 0056 xxxx

Suits:AMCC Tanks

Part No:

GM002

Speed:25rpm
Shaft:16mmD x 98mmL Straight
Identification:

R1C 225 D2BC

01 1600 0172 xxxx

Suits:Westfalia Tanks

M Series

Recommended up to 2,000lt milk tanks
Note: Some geared motors may require adaptor plates

Part No:

GM004

Speed:

30rpm

Shaft:

19mm Shaft with 6mm Hole

Identification:

R1C 245 M2B or R1C 225 M2B

02 1522 1111 xxxx

Suits:

Anderson, Dairy Kold, Frigrite and QBB – Tanks up to 2,000lt

N Series

Recommendations: 2,500lt to 8,000lt - 1 agitator, 9,000lt -14,000lt - 2 agitators, 15,000lt to 25,000lt - 3 agitators.
Note: Some geared motors may require adaptor plates

Part No:

GM005

Speed:

32rpm

Shaft:

19mm Shaft with 6mm hole

Identification:

R1C 245 N5BR

02 1022 0811 xxxx

or 02 1022 1012 xxxx

Suits:

Anderson, Dairy Kold, Fitzroy/Challenge, Frigrite and QBB – Tanks up to 5,000lt

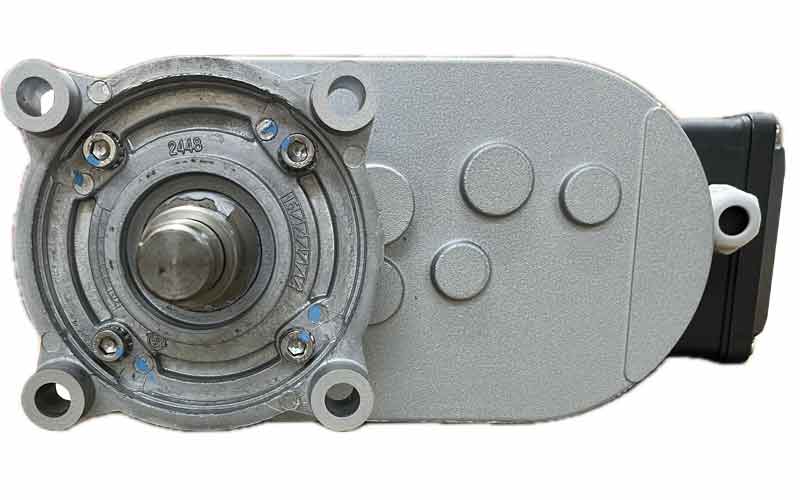

Part No:

GM006

Speed:

32rpm

Shaft:

19mm Shaft with 2 dimples

Identification:

R1C 245 N5BR

02 1022 1012 xxxx

Suits:

Barry Brown, Crown Stainless and NDA Tanks

Part No:

GM011

Speed:

32rpm

Shaft:

35mmOD 27mmID shaft with 2 locating lugs

Identification:

R1C 245 N2BR

01 1000 0103 xxxx

R1C 245 N5BR

01 1000 0105 xxxx

Suits:

Byford, Mueller and some Westfalia Tanks

Part No:

GM012

Speed:

25rpm

Shaft:

28mm Threaded

Identification:

R1C 245 N2BR

01 1000 0395 xxxx

or 02 1020 5701 xxxx

Suits:

Some Westfalia Tanks

Part No:

GM013

Speed:

32rpm

Shaft:

32mmOD 19mmID shaft with 6mm hole

Identification:

R1C 245 N5BR

02 1022 1012 xxxx

Suits:

Reconditioned Zero Tanks

Part No:

GM014

Speed:

25rpm

Shaft:

28mm Threaded

Identification:

R1C 245 NSBR

02 1020 4401 xxxx

Suits:

Fitzroy Roka, Westfalia  Nordic Tanks with Triangular Fixation

Part No:

GM021

Speed:

30rpm

From 2021 – 25rpm

Shaft:

27mmID with 2 lugs

Identification:

R1C 245 NP5BR

02 1021 8820 xxxx

Suits:

De Laval/Alfa Laval Tanks complete with wash housing

Part No:

GM024

Speed:

23rpm

Shaft:

28mmOD Threaded Hollow Shaft complete with wash hat

Identification:

R1C 245 NP A7B

02 1023 9001 xxxx

Suits:

Packo Dolphin Series Tanks complete with wash housing and mechanical seal

23

Part No:

GM025

Speed:

32rpm

Shaft:

3/4 Threaded

Identification:

R1C 245 N5BR

02 1022 1012 xxxx

Suits:

Boumatic Tanks with 3 or 4 legs

Part No:

GM027

Speed:

32rpm

Shaft:

27mm ID

Identification:

R1C 245 N5BR

01 1000 0103 xxxx or

02 1020 2501 xxxx

Suits:

Serap

Part No:

GM028

Speed:

32rpm

Shaft:

19mm Shaft with 6mm Hole

Identification:

R1C 245 NSBR

02 1022 1012 xxxx

Suits:

Truscott

Part No:

GM029

Speed:

32rpm

Shaft:

25mm ID

Identification:

R1C 245 N2BR

02 1000 0103 xxxx

Suits:

Byford and Mueller

Part No:

GM033

Speed:

23rpm

Shaft:

  28mmOD Threaded Hollow Shaft

Identification:

R1C 245 NP7B

02 1023 7701 xxxx

Replaces

R1C 245 N7B

02 1023 0301 xxxx

Suits:

All Packo Tanks

P Series

Recommended for 9,000lt - 20,000lt milk tanks
Note: Some geared motors may require adaptor plates

Part No:

GM019

Speed:

32rpm

Shaft:

27mmID and 4 lugs

Identification:

R1C 250 P5B

02 0823 1736 xxxx

Suits:

Large Byford Tanks

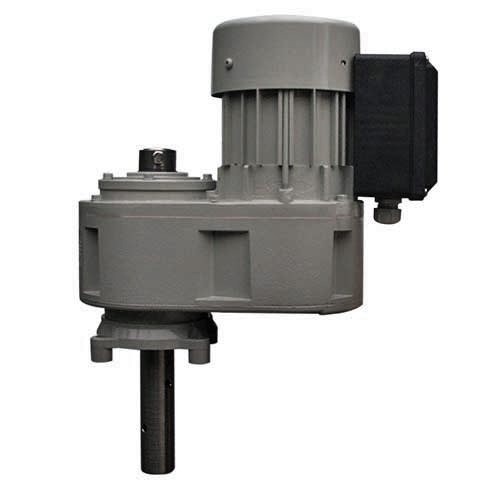

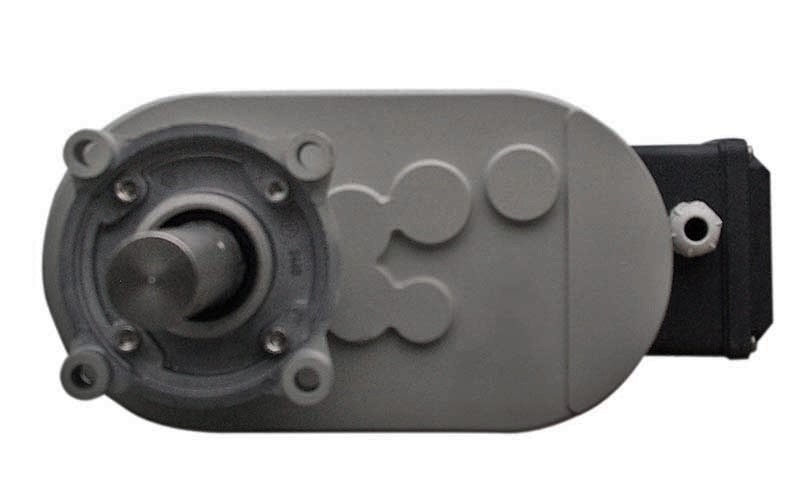

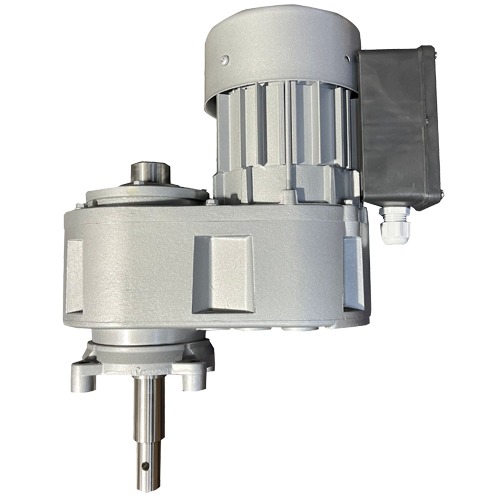

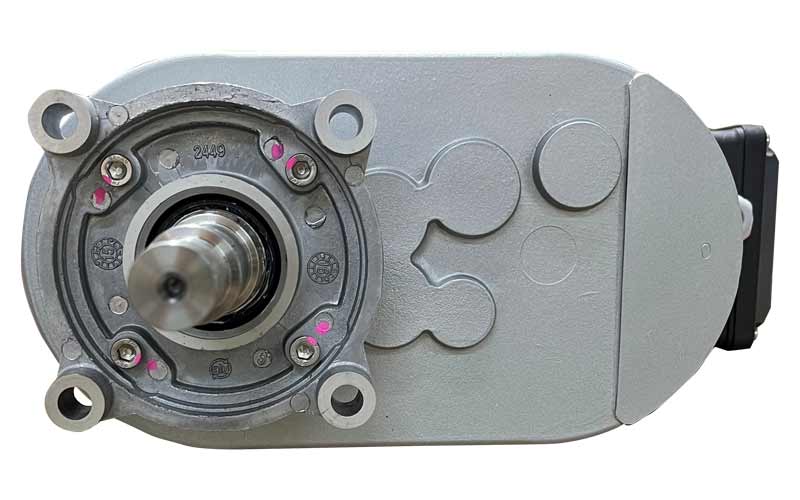

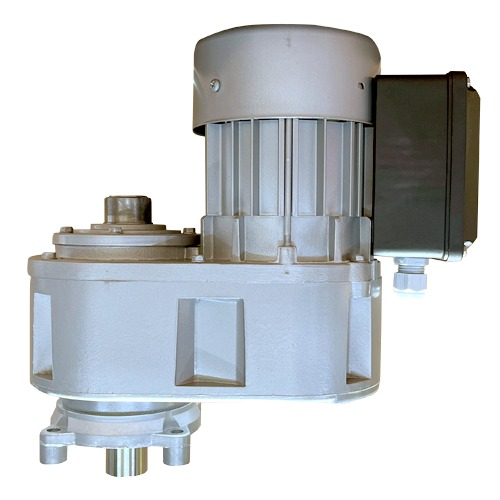

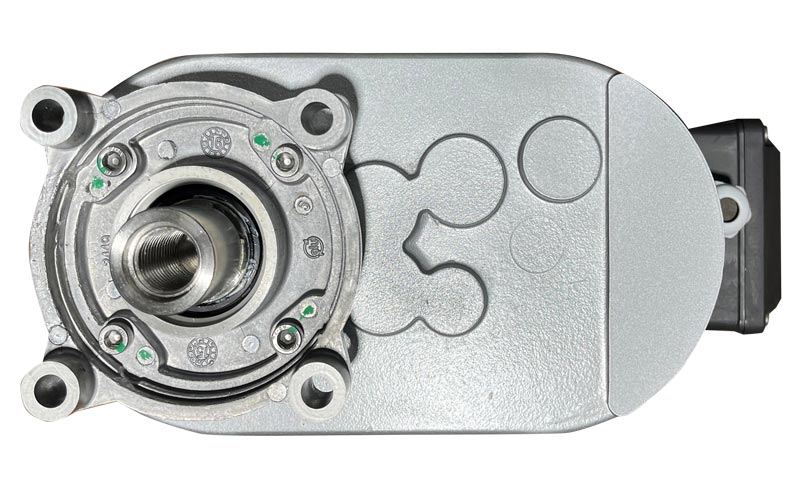

Part No:

GM020

Speed:

32rpm

Shaft:

25mm x 115mm long shaft with 2 x 6mm holes or 30mm x 120mm long shaft with 2 x 6mm holes

Identification:

R1C 250 P5B

02 0823 3201 xxxx

or 02 0823 1736 xxxx

Suits:

Large Frigrite Tanks 6000lt plus, Byford and Furphy Thermatec Tanks

Part No:

GM022

Speed:

23rpm

Shaft:

27mmID and 4 lugs

Identification:

R1C 250 PP5B

01 0800 0090 xxxx

or 02 0840 0004 xxxx

Suits:

Large De Laval Tanks complete with wash box

Part No:

GM026

Speed:

32rpm

Shaft:

7/8” x 75mm shaft with 6mm hole

Identification:

R1C 250 P5B

02 0823 1736 xxxx

Suits:

Alfa Laval Belt Drive (USA) and Nord Type De Laval Tanks

Spare Parts

Our range of spare parts includes gear assemblies, shafts, bushes and adaptor plates.

Please contact us to discuss your requirements.
